AUTOMATIC WATERING SYSTEMS


THE FASTER, SAFER & BETTER WAY TO WATER.



With Battery Watering Technologies single-point system, there’s no more opening vent caps manually and filling each cell individually. Instead, each battery is equipped with an easily installed series of interconnected valves which replace your existing vent caps. An electrolyte level indicator gives a visual indication that the cells were filled after watering.

Water flows through a single connection, filling each cell accurately and efficiently. The whole process takes less than one minute. Since batteries need to be filled several times each month, the 90-95% savings in time translates into substantial cost savings. With watering time dramatically reduced, employees become available for other tasks.

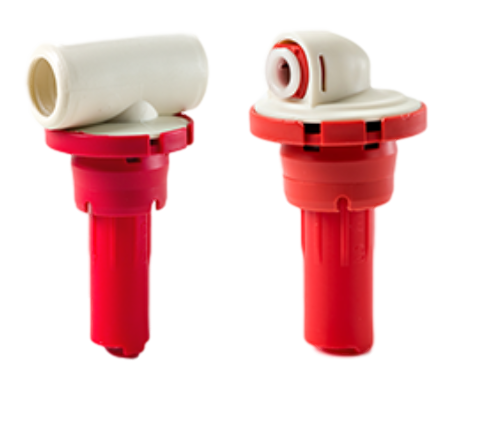

INNOVATIVE VALVE DESIGN

The internal working components of the valve are above the cells, keeping them out of the electrolyte.  The level indicator eye verifies proper valve operation. Valves should only be removed during routine maintenance, eliminating the risk of battery acid exposure or damaging floors and equipment.

Downloads
BWT Sales Brochure
BWT Installation Instructions

Watering Devices

Battery Watering Technologies’ products can be used with most competitor high and low pressure products.
We offer a wide array of watering devices to meet our customers' needs.

Philadelphia Scientific Stealth Watering System

The Stealth Watering System™ is the best battery watering system on the market for light duty, smaller applications. It makes battery watering safe, easy and affordable and incorporates many unique features that make it the best in its class and the most convenient to install.  It fills an industrial battery in one tenth the time of hand watering, which means that these systems typically pay for themselves in under a year.   For example, a typical 25 battery account will save $7,000 per year in labor (at $20 per hour) when using the Stealth Watering System instead of hand watering.   These savings are only for labor and do not include the benefits of longer battery life and run time due to correct battery watering.   The system also improves safety since it prevents exposure to electrolyte while filing.
Downloads
Stealth Sales Brochure
Stealth Installation Instructions
Stealth Parts List

Injector Watering System

Philadelphia Scientific
Injector (High Pressure) Watering System

The Water Injector System™ is the world’s fastest and most reliable way to add water to industrial batteries. Filling a battery takes just 15 seconds, which means that you can fill 8 batteries in the time that it takes to fill 1 battery with other systems! There are two versions of the system available to meet your needs: the Water Injector Classic System™ and the Water Injector Spider System™. Both systems feature legendary reliability and speed of fill but differ in the way that the water is delivered to each Injector valve and the way they fit on top of the battery.
The system also improves safety and environmental cleanliness. There is no need to peer into cells to inspect levels as with manual filling. And water Injectors automatically fill each cell to the correct level, so there is no overfilling and no electrolyte spillage during charging.  Did you know that each time a battery boils over it loses 3% of its capacity?   That equates to 15 minutes of run time for each and every boil over!  And the only way to recover the capacity is to perform an expensive acid equalization process, which typically costs more than the Water Injector System
Downloads
Injector Sales Brochure
Injector Parts List
Injector Installation Instructions
